DETAILED INTRODUCTION

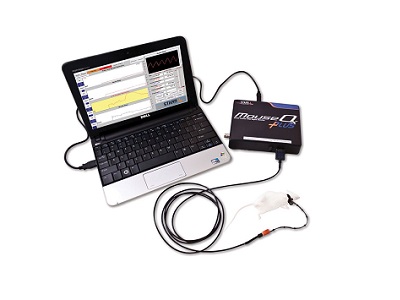

The MouseOX Plus is the second generation of the original pulse oximeter for mice and rats. The MouseOx Plus measures heart rate, arterial oxygen saturation (SpO2), breath rate, and temperature* of anesthetized & conscious mice and rats neonate-adult.
The MouseOx Plus is the second generation of the original pulse oximeter for mice, rats and other small animals. It is clinically validated and has been used and cited in a multitude of published studies.
- Noninvasive Physiological Monitor
- Monitor Anesthetized & Conscious Subjects
- Measure Arterial Saturation, Heart Rate, Breath Rate, Temperature & More
- Measures Heart Rates of 90 – 900 bpm
- Monitor Up To 16 Subjects
- MRI Compatible (with MRI sensor)
MOUSEOX PLUS PARAMETERS
- Arterial Saturation – The amount of oxygen bound to hemoglobin in mice, rats, and other small animals.
-
- Heart Rate – Able to measure small animals with heart rates of 90 – 900 bpm.
-
- Breath Rate – Provides breathing rate using the same sensor
-
- Pulse Distension – Change in arteries at the Sensor site due to a heart beat
-
- Breath Distension – Change in arteries at the sensor site sue to breathing
-
- Temperature – Monitor subject core body temperature using the temperature probe
-
- Activity – Monitoring gross motion of a subject over a period of time

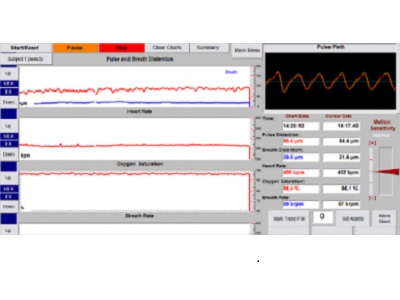

PULSE OXIMETER SOFTWARE MODULES
Whether you need to monitor the health of your anesthetized subjects or record data from conscious subjects, The MouseOx Plus Software Modules provides versatility according to your research needs.
- 3 separate modules
- Options to monitor or record data
- Standard or Premium software versions available
- Easily add temperature and/or MRI monitoring

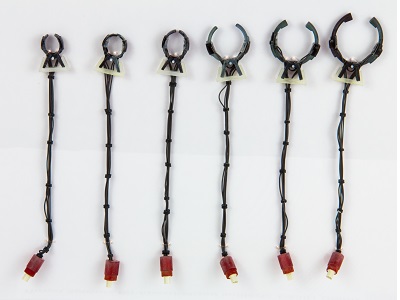

PULSE OXIMETER SENSORS
The MouseOx Plus has multiple sensors available to monitor or record measurements on both conscious and anesthetized mice, rats and other small animals.
- Record & Monitor Both Anesthetized & Conscious Subjects
- Choose Best Sensor Location According To Application
- MRI Compatible Senor Available
- Obtain Several Physiological Parameters With A Single Sensor

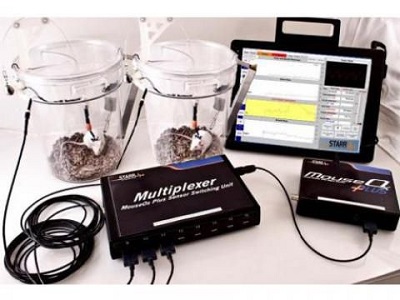

MULTIPLEXERS
Our Multiplexer extends the function of the MouseOx Plus by allowing monitoring and recording of data from 8 to 16 subjects connected to a single MouseOx.
- Monitor & Record up to 16 Subjects with a MouseOx Plus
- Automatic, Scheduled & Manual Switching Options
- Summary Screen
ANALOG DATA OUTPUT MODULE PLUS
The STARR-Link Analog Output Module provides 0-5 Volt analog outputs of the parameters measured by the MouseOx. It serves as an interface between the MouseOx and other data acquisition hardware.
- Output of MouseOx Data
- Voltage Range of 0 to 5
- Up to 8 Simultaneous Data Channels
- No Calibration Required
MOUSEOX PLUS SPECIFICATIONS
STARR Life Sciences MouseOx® Plus
Works on Conscious Subjects
Yes
Flags Corrupt Measurements with Error Codes
Yes
Ambient Light Cancellation
Yes
Peer-Reviewed Clinical Validation
Yes
Vital Sign Parameters
Heart rate, breath rate, SpO2, pulse distention, breath distention
Available Sensors
Mouse thigh, mouse paw, mouse collar, mouse throat, rat foot, rat collar,
rat throat. Sized neonate-adult
Sensor Site Preparation
None if using mouse paw or rat foot. If using collar or throat sensors and
animal has dark fur, fur must be removed at sensor site
MRI Sensor Availability
Yes- tested and verified to work in up to 14t environment
Third-party Sensor Compatibility
No, MouseOx was designed from the ground up specifically for use in mice
and rats
Sensor Longevity
Recommended replacement after 100 hours, however user dependent
Customer Support
Free web training and phone support
Installation Set-Up
Software wizard included
Third-Party Data Acquisition Capabilities
Yes including ADI lab chart and powerlab with use of STARR-Link analog
data output module
Plethysomgraphic Waveform Display
Yes
Real-time data acquisition, display, recording
Yes
